Figure 4 pSLA Resins

Unlock high-volume, continuous production with the Figure 4 pSLA material portfolio. The pSLA (Production Stereolithography) designation emphasizes the industrial quality, speed, and reliability of the Figure 4's Continuous DLP  technology.

These large 9kg Figure 4 resin cartridges are purpose-built for sustained, long-run manufacturing across diverse applications—from durable jigs and fixtures to heat-resistant end-use components. Designed for automated handling and minimal operator intervention, the pSLA material line ensures consistent performance, lower cost-per-part, and maximum throughput for your Figure 4 system.
Resin, Figure 4 Tough FR V0 Black, 9 kg

Resin, Figure 4 Tough FR V0 Black, 9 kg

$2,773.40
$2,773.40
Resin, Figure 4 Tough 60C White, 9kg

Resin, Figure 4 Tough 60C White, 9kg

$2,518.60
$2,518.60
Resin, Figure 4 Rigid White, 9kg

Resin, Figure 4 Rigid White, 9kg

$2,263.80
$2,263.80

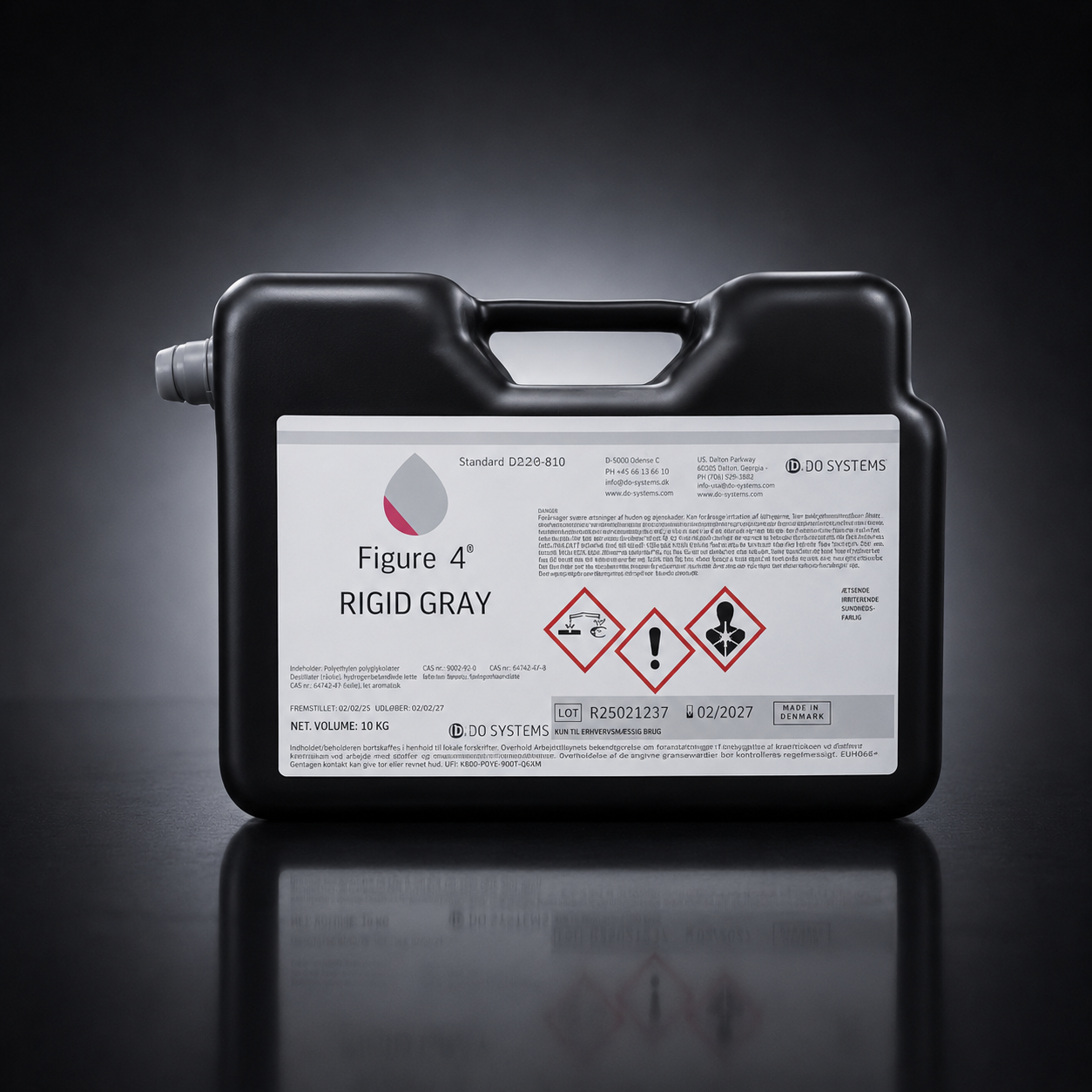

Resin, Figure 4, Rigid Gray, 9kg

Resin, Figure 4, Rigid Gray, 9kg

$2,263.80
$2,263.80
Resin, Figure 4 PRO-BLK 10, 9kg

Resin, Figure 4 PRO-BLK 10, 9kg

$2,263.80
$2,263.80
Resin, Figure 4 Hi-Temp 300 AMB, 9kg

Resin, Figure 4 Hi-Temp 300 AMB, 9kg

$2,773.40
$2,773.40
Resin, Figure 4 FLEX-BLK 20, 9kg

Resin, Figure 4 FLEX-BLK 20, 9kg

$2,263.80
$2,263.80
Resin, Figure 4 EGGSHELL-AMB 10, 9kg

Resin, Figure 4 EGGSHELL-AMB 10, 9kg

$2,773.40
$2,773.40

The Figure 4 pSLA Advantage: Industrial-Scale Material Supply

The Figure 4 platform's success in production environments is driven by the performance and volume of its pSLA materials. Offering resins in the larger 9kg cartridge size is key to minimizing downtime and ensuring material continuity for high-throughput batch or continuous manufacturing operations. The materials themselves are rigorously tested to provide true end-use properties, bridging the gap between additive manufacturing and traditional production plastics.

High-Volume General Production Resins

This selection represents the workhorses of the Figure 4 pSLA portfolio, providing excellent mechanical properties, dimensional accuracy, and a superb surface finish for a wide range of everyday production needs.

  • Figure 4 PRO-BLK 10: The go-to industrial production plastic, offering a superb balance of rigidity, toughness, and long-term stability for durable, detailed black parts.
  • Figure 4 Rigid (Gray & White): Formulated for high stiffness and dimensional stability, these resins are essential for creating precise enclosures, snap-fit components, assembly guides, and tooling that must resist deflection under load.
  • Figure 4 Tough 60C White: A durable resin with good impact resistance, ideal for functional testing and production parts that require a balance of strength and moderate heat deflection.
advantage3d

Specialty Thermal & Safety Materials

For applications requiring compliance or resilience in harsh environments, these pSLA materials deliver performance properties that meet critical industrial standards.

  • Figure 4 Hi-Temp 300 AMB: Offering an exceptionally high Heat Deflection Temperature (HDT) of 300 ºC after thermal post-cure. This resin is critical for manufacturing tooling, fluid-flow components, and parts that undergo extreme thermal cycling.
  • Figure 4 Tough FR V0 Black (Fire Retardant): Meets the stringent UL94 V0 flammability standard, making it a necessary choice for parts in electronics, automotive, and aerospace that require self-extinguishing properties for safety.
advantage3d

Elastomeric & Flexible Solutions

The capability to rapidly produce functional flexible parts is a key differentiator of the Figure 4 pSLA process. These materials allow users to consolidate soft component production in-house.

  • Figure 4 FLEX-BLK 20: A flexible, durable resin used to create parts that require rebound and resistance to bending and compression. Ideal for functional grips, seals, gaskets, and flexible linkages.

Tooling & Sacrificial Resins

Beyond final parts, the Figure 4 pSLA materials enable indirect manufacturing methods, allowing users to rapidly create specialized molds and tools.

  • Figure 4 EGGSHELL-AMB 10: This specialized sacrificial resin is optimized for creating highly accurate, thin-walled patterns. It is primarily used to produce master patterns for RTV silicone molding, where the shell is easily removed after the silicone cure.
