    $188,995.00
    {price}% OFF

    In stock

    Built for Productivity

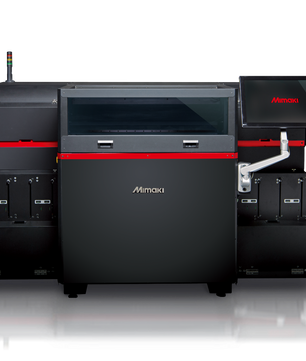

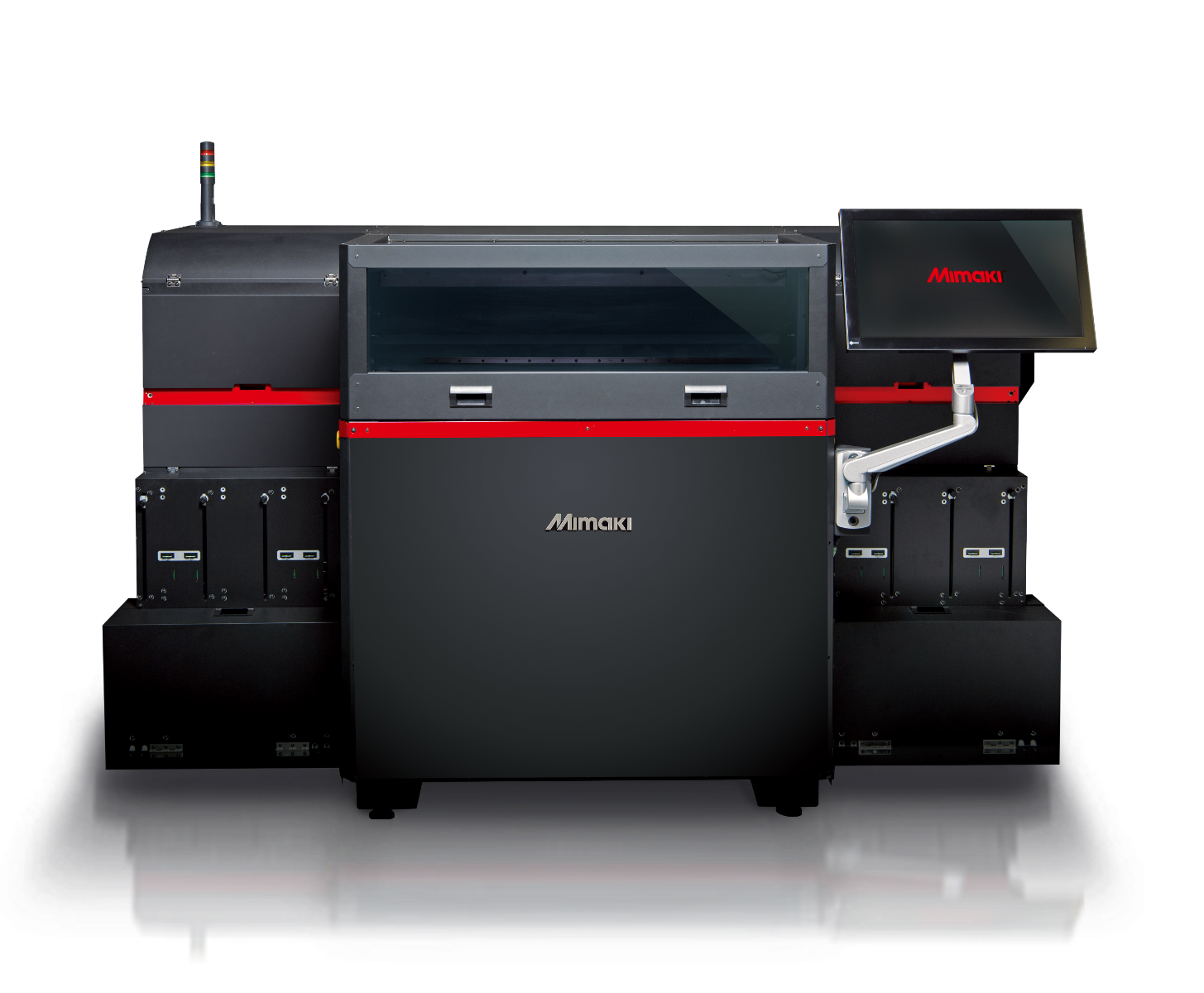

    The first of its kind, the 3DUJ-553 color 3D printer has over 10 million colors and saves time and money by eliminating finishing and producing flawless small-detailed parts.

    High print speeds enable lower-cost prototyping completed within hours. This multi-color 3D printer yields fine details, smooth surfaces, and more efficient material use. It also improves workflow for designers in industrial and other professional segments.

    • Prints over 10 million colors with ICC color management
    • 8 piezo-electric industrial inkjet heads
    • Works with CMYK, white, and clear inks
    • Build area of 20” x 20” x 12” for effective prototyping
    • Dual UV-LED curing of pigmented liquid photopolymer resins
    • Prints in 22 micron layers per sweep for extra fine details
    • 3DLink model layout software
    • Water soluble support material for part durability
    Specifications

    • Build Area (W × D × H): 20 x 20 x 12 inches (508 x 508 x 305 mm)
    • Max. Build Weight: 154.3 lbs (70 kg)
    • Color Range: More than 10 million
    • Print Mode / Resolution / Thickness:
    Fast / 42 micron
    Standard / 32 micron
    High Quality / 22 micron
    Color-in-Clear / 19 micron
    • Curing: Water-cooled LED-UV lamps x 2
    • File Formats: STL, OBJ, VRML, PLY, 3MF
    • Circulation: Internal print head ink circulation
    • Interface: Ethernet 1000 BASE-TX (Gigabit)
    • Safety Standards:
    VCCI Class A / FCC CLASS A / ETL (UL60950 compliant)
    CE marking (EMC Directive, Low Voltage Directive)/ CB certification / RoHS compliant / REACH
    • Operational Environment:
    Temperature: 59 – 95 °F (15 – 35 °C)
    Humidity: 35 – 60% RH, non-condensing
    Accuracy guaranteed temp.:68 – 77 °F (20 – 25 °C)
    • Power: Single-phase 100-240 VAC, ±10%, 50/60 Hz ±1 Hz ×3 (Main unit 1 / Monitor 1 / External PC 1)
    • Power Consumption: 1,630W or less (Total)
    • Outer Dimension (W x D x H): 88.6 x 59 x 61 inches (2250 x 1500 x 1550 mm)
    • Weight: 1323 lbs (600 kg)
    • Print Size: X: 5cm Y: 50cm Z: 1cm = 250cm3
    • Layer thickness:
    42μm
    32μm
    22μm
    • Resolution:
    600x300x600
    600x300x800
    600x300x1,270
    • Print time:
    1:30 h
    1:45 h
    2:24 h
    • Print size: X: 50cm Y: 50cm Z: 1cm = 2,500cm3
    • Layer thickness:
    42μm
    32μm
    22μm
    • Resolution
    600x300x600
    600x300x800
    600x300x1,270
    • Print time
    8:17 h
    9:41 h
    13:12 h
