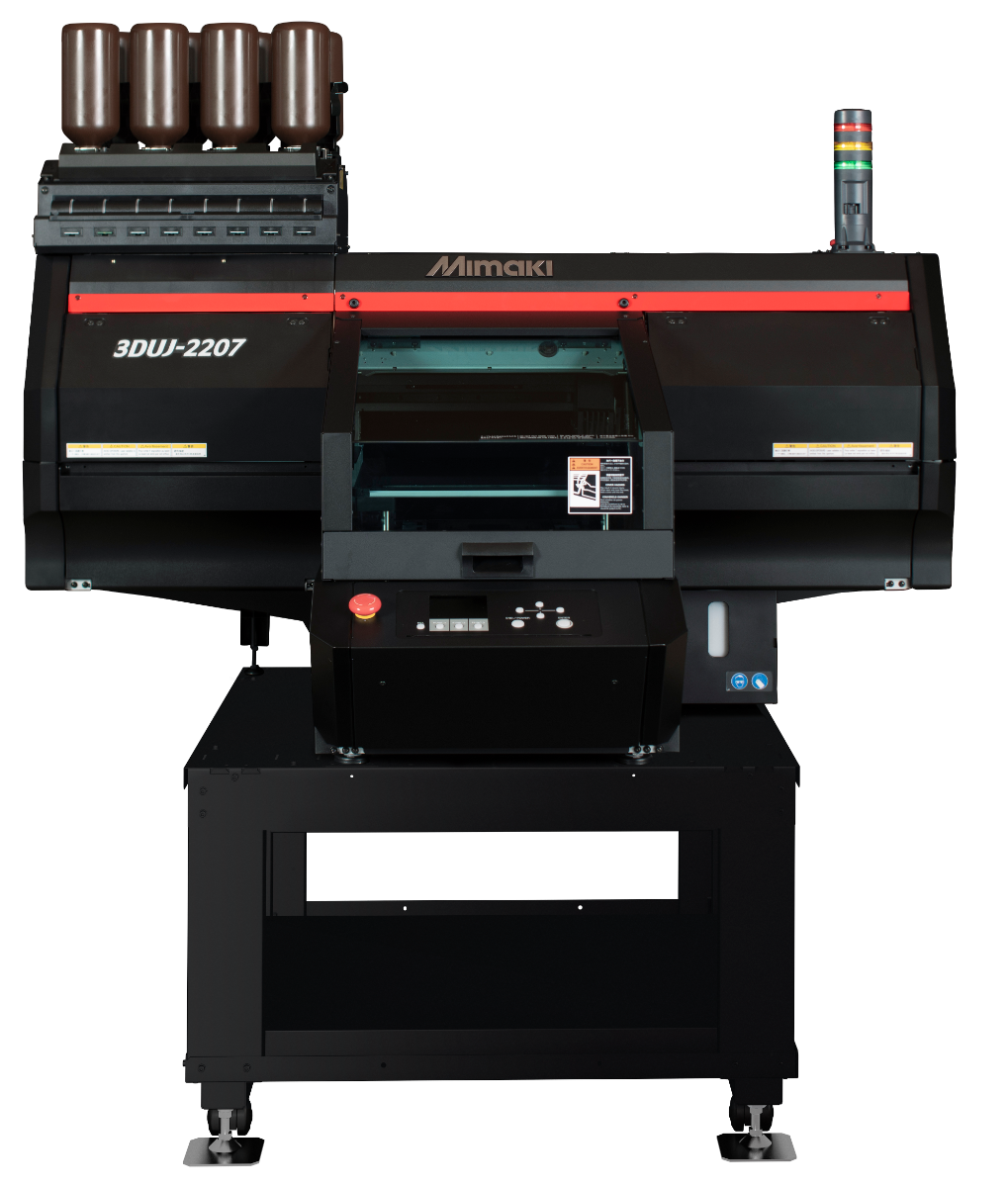

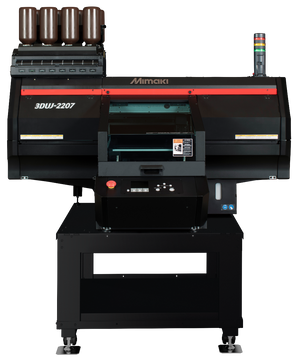

Mimaki 3DUJ-2207
Mimaki 3DUJ-2207
Mimaki 3DUJ-2207
Mimaki 3DUJ-2207
Mimaki 3DUJ-2207
Mimaki 3DUJ-2207
    Mimaki 3DUJ-2207
    Mimaki 3DUJ-2207
    Mimaki 3DUJ-2207
    Mimaki 3DUJ-2207
    Mimaki 3DUJ-2207
    Mimaki 3DUJ-2207

    Mimaki 3DUJ-2207

    $42,078.00
    {price}% OFF

    In stock

    Built for Productivity

    The first of its kind, the 3DUJ-553 color 3D printer has over 10 million colors and saves time and money by eliminating finishing and producing flawless small-detailed parts.

    High print speeds enable lower-cost prototyping completed within hours. This multi-color 3D printer yields fine details, smooth surfaces, and more efficient material use. It also improves workflow for designers in industrial and other professional segments.

    • Prints over 10 million colors with ICC color management
    • 8 piezo-electric industrial inkjet heads
    • Works with CMYK, white, and clear inks
    • Build area of 20” x 20” x 12” for effective prototyping
    • Dual UV-LED curing of pigmented liquid photopolymer resins
    • Prints in 22 micron layers per sweep for extra fine details
    • 3DLink model layout software
    • Water soluble support material for part durability
    Specifications

    • Build Area (W × D × H): 8 x 8 x 3 inches (203 x 203 x 76 mm)
    • Color Range: More than 10 million
    • Print Mode / Resolution / Thickness: Standard/28 micron
    • Curing: Air-cooled LED-UV Lamp x1
    • File Formats: SSTL, OBJ, VRML, PLY, 3MF
    • Interface: Ethernet 1000 BASE-T
    • Operational Environment
    Temperature: 68-86°F (20-30°C)
    Humidity: 35 – 60% RH
    Accuracy guaranteed temp: 68-77°F (20-25°C)
    • Power: Single-phase (AC100-120V / 220-240V, ± 10%, 50 / 60Hz ± 1Hz) x 1
    • Power Consumption:
    350 W Or less
    When using deodorizer (optional): 500 W or less
    • Outer Dimension (W x D x H): 53.3 x 50.7 x 33.7 inches (1,355 x 1,290 x 856 mm)
    • Weight: 309lbs / 140kg
    • Layer thickness: 28μm
    • Resolution: 1200 x 1200 DPI
    • Software: Mimaki 3DLink
    • Options
    Printer Stand
    Air Filter
    • Safety Standards
    VCCI-classA, FCC ClassA, UL62368-1
    CE marking (EMC directive, low voltage directive, mechanical directive)
    CB certification, RoHS compliant, Reach compliant, EAC, RCM
