Markforged Metal X 3D Printer
The Metal X System is the most accessible way to fabricate complex metal parts in the widest variety of advanced metals.
Simple, Yet Powerful
The Metal X is the most intuitive, simple to use metal 3D printer available today. Print a wide range of materials from stainless steels to copper with minimal training on a closed workflow.Safe and Affordable
The Metal X is designed to be safe to use and accessible for all fabricators. It costs 5-10 times less than DMLS metal 3D printing systems and requires no dedicated operator, no powder management system, and minimal PPE.Best-In-Class Reliability
The Metal X is purpose-built for great part quality and a seamless user experience. Markforged combines best-in-class software, materials research, and an advanced motion system to deliver industrial-grade parts reliably.Design your part, upload it into our browser-based software, select from a wide range of metals, and hit print. It's that simple.
3D Printer
3D Printing Materials
System Details
Documents
3D Printing Process
Metal FFFZ Layer Resolution
50 μm - 125 μm (Post-Sinter)
Printing Media
Bound Powder Filament
Internal Part Geometry
Closed Cell Infill (Triangular) or Solid Parts
Print Bed
Heated, Auto Leveling, Replaceable Print Sheets
Build Envelope Size
300 mm x 220 mm x 180 mm (11.8 x 8.6 x 7.08 in)
17-4 PH Stainless Steel
Copper
Inconel 625
H13 tool steel
A1 tool steel
D2 tool steel
About the Printer

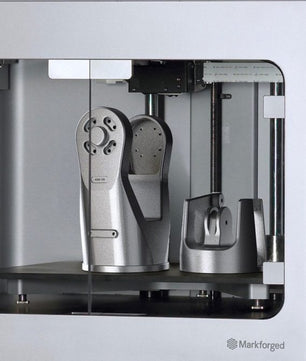

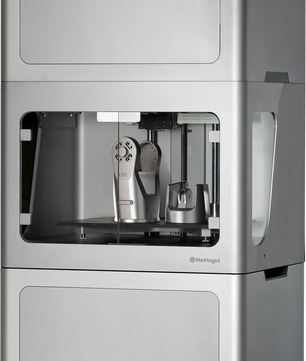

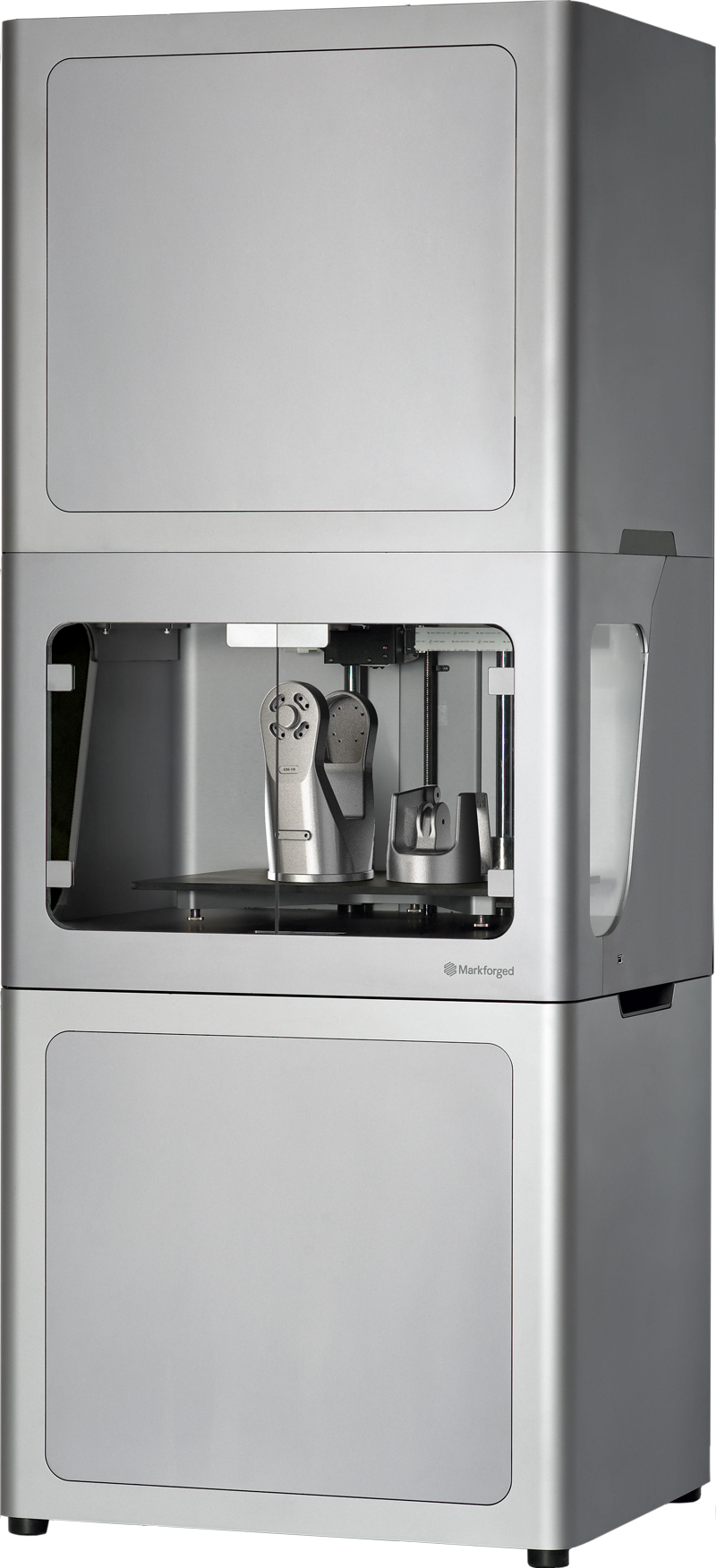

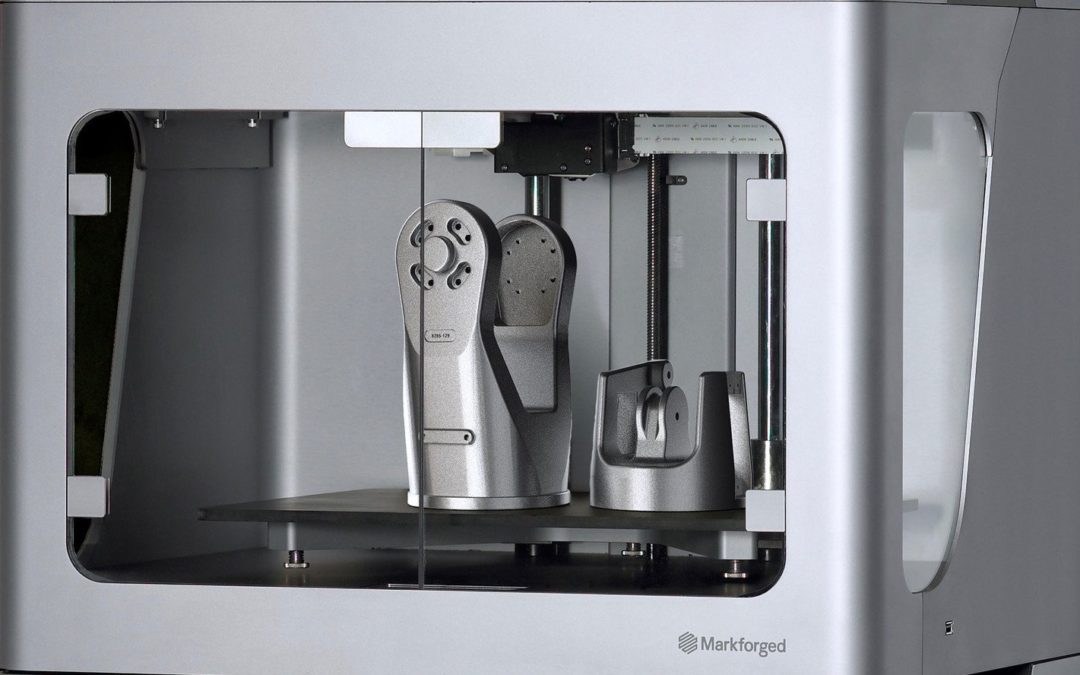

The Markforged Metal X is a new kind of metal printer. By printing metal powder bound in a plastic matrix, Markforged has become the first company to eliminate the safety risks associated with traditional metal 3D printers. That means no loose powder, no lasers, and none of the traditional safety precautions. It’s safe to use in a shop environment with minimal facility upgrades.In practice, the Metal X is essentially a very advanced FFF 3D printer. Featuring a precision machined gantry, a heated chamber and print bed, and advanced extrusion hardware, the Metal X is equipped to reliably print you durable parts. It is intentionally designed, with wear components and consumables — including print sheets, nozzles, and brushes — accessible and trivial to swap.
Software
Markforged Eiger Cloud (Other options available at cost)3D Printer Footprint
575 x 467 x 1120 mm (22.7 x 18.4 x 44.1 in)
Weight
75 kg (160 lbs)
Power Requirements
100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20
About the Printer
The Wash-1 is a solvent-based debinding system. It primarily uses Opteon SF-79, a high-performance fluid designed to offer superior cleaning power, higher efficiency, and safety in an environmentally sustainable way — Opeton SF-80 or Tergo Metal Cleaning Fluid can be substituted if needed.The Wash-1 operates with simple ventilation and features an extremely simple user experience. It’s been tested and verified as a shop-safe system.
Sinter-2 and Sinter-1
The Markforged Sinter-2 and Sinter-1 are highly optimized tube furnaces used for sintering 3D printed metal parts. They provide best in class sintering reliability and run times and are equipped with advanced safety features. The Sinter-2 is more advanced than the Sinter-1 — featuring a larger working volume, more precise temperature control, and a mechanical door interlock.The Sinter-1 and Sinter-2 typically have run times between 26 and 31 hours. However, the Sinter-2 can process small parts in express mode, where it can sinter up to 250g of parts in just 17 hours.
From stainless steel to copper, choose from a wide range of strong, durable, and capable materials.
Revolutionary parts are just a form away!
Connect with one of our additive manufacturing experts to Request a Quote, Sample part or Discuss an 3D printing application
Metal X Customer Success Stories
Guhring UK
Opening up new revenue streams with additive manufacturing
