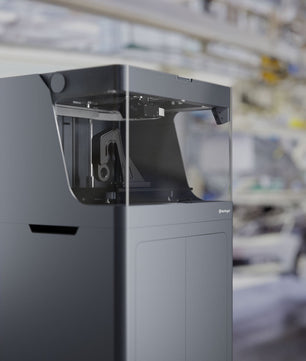

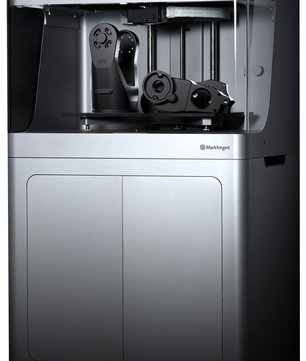

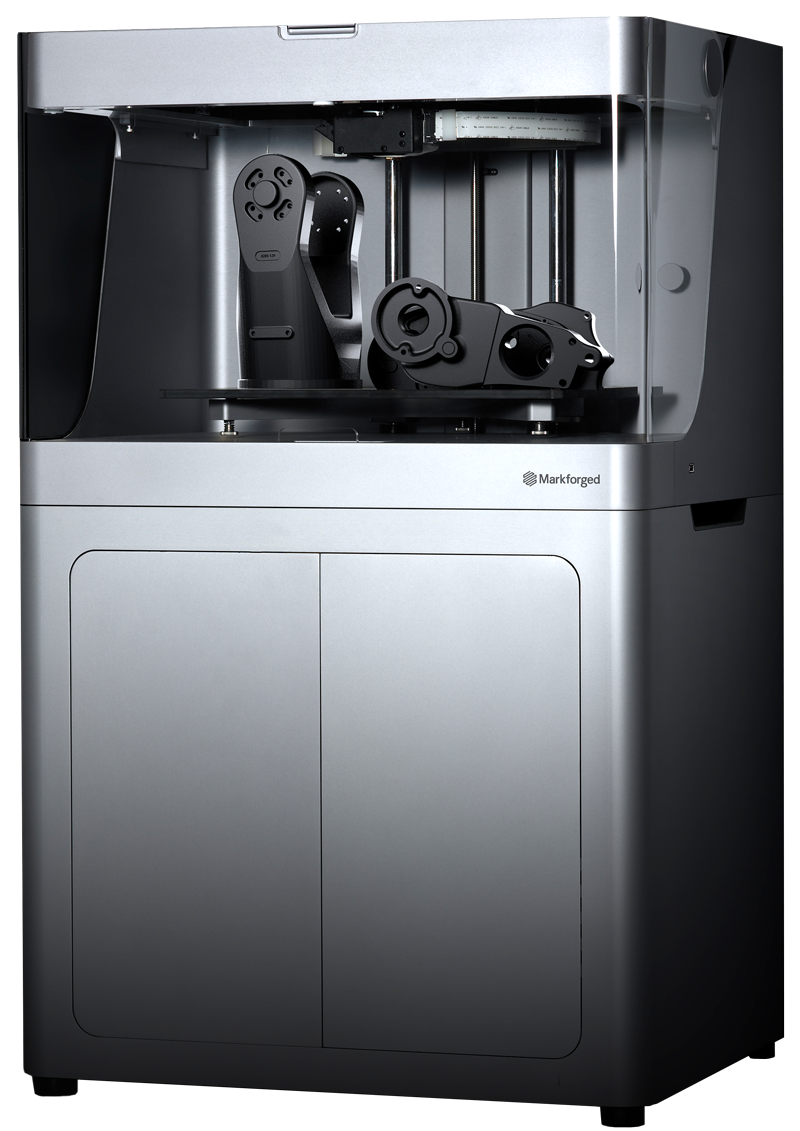

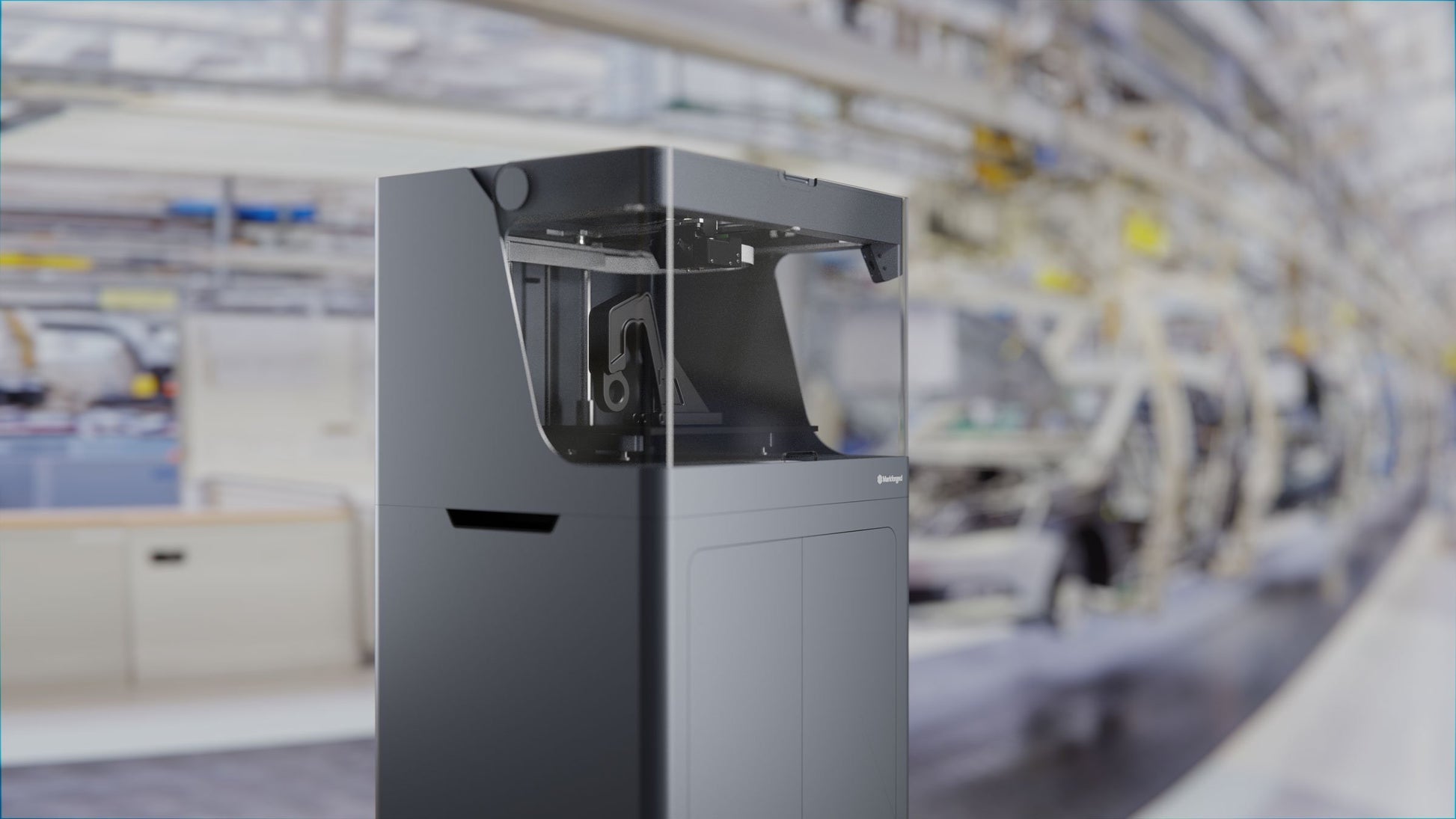

Markforged X3 3D Printer
The X3 merges industrial quality and build volume into a benchtop form factor, bringing FFF composite 3D printing to your manufacturing floor.
High-Strength Printing
The X3 brings two versatile, advanced, micro carbon fiber filled nylon materials to a precision-built FFF platform, delivering functional part after functional partPrecise and Beautiful Parts
Print in a wide variety of print modes all optimized to yield quality parts — including 50 μm resolution, which delivers ultra-high-quality parts without visible layer lines.Built to Last
Precision-machined hardware, advanced sensors, and unique software drive industry leading accuracy and reliability. Only Markforged industrial 3D printers offer micron-level laser scanning for closed-loop calibration, reliably yielding parts with 50 μm repeatability and industry-leading surface finish.Simple FFF Process. Robust Parts.
3D Printer
3D Printing Materials
System Details
Documents
3D Printing Process
Fused Filament Fabrication (FFF)Printing Material
Composite Base Filaments
Build Envelope Size
330 mm x 270 mm x 200 mm (12.9 x 10.6 x 7.8 in)
Onyx
Onyx FR
Onyx ESD
About the Printer
The Markforged X3 industrial 3D printer combines precision-built hardware, advanced sensors, and best-in-class software to deliver accurate parts repeatably. It features a reinforced, precision-machined gantry and a precision ground print bed that can be removed and replaced with 10μm repeatability. Each piece of hardware in the filament extrusion system — from the nozzles to the extruder hobs — is optimized to resist wear from micro carbon fiber filled nylon filaments and maintain print quality over thousands of hours. Out of material sensors ensure that you’re always printing while a scanning laser on the printhead enables the printer to dynamically adjust the first layers of a print to achieve perfect bed adhesion.Software
Markforged Eiger Cloud (Other options available at cost)3D Printer Footprint
584 x 483 x 914 mm (23 x 19 x 36 in)
Weight
46 kg (102 lbs)
Power Requirements
100–240 VAC, 150 W (2 A peak)
Print high-quality parts with Markforged's micro carbon fiber reinforced nylon filaments.
- 3D Printing Process - Fused Filament Fabrication (FFF)
- 3D Printing Build Envelope - 330 mm x 270 mm x 200 mm
- 3D Printing Layer Resolution - 50 μm - 200 μm
- X3 Printer Footprint - 584 mm x 483 mm x 914 mm (23 x 19 x 36 in)
- Available 3D Printing Materials : Onyx (See Documents Tab for Markforged Material Data Sheet)
