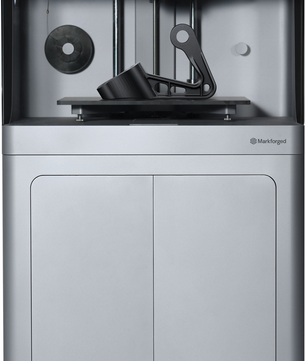

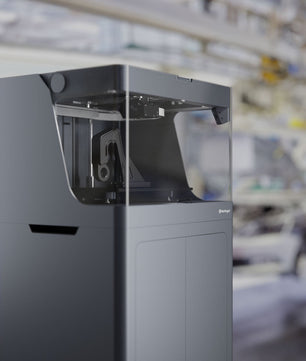

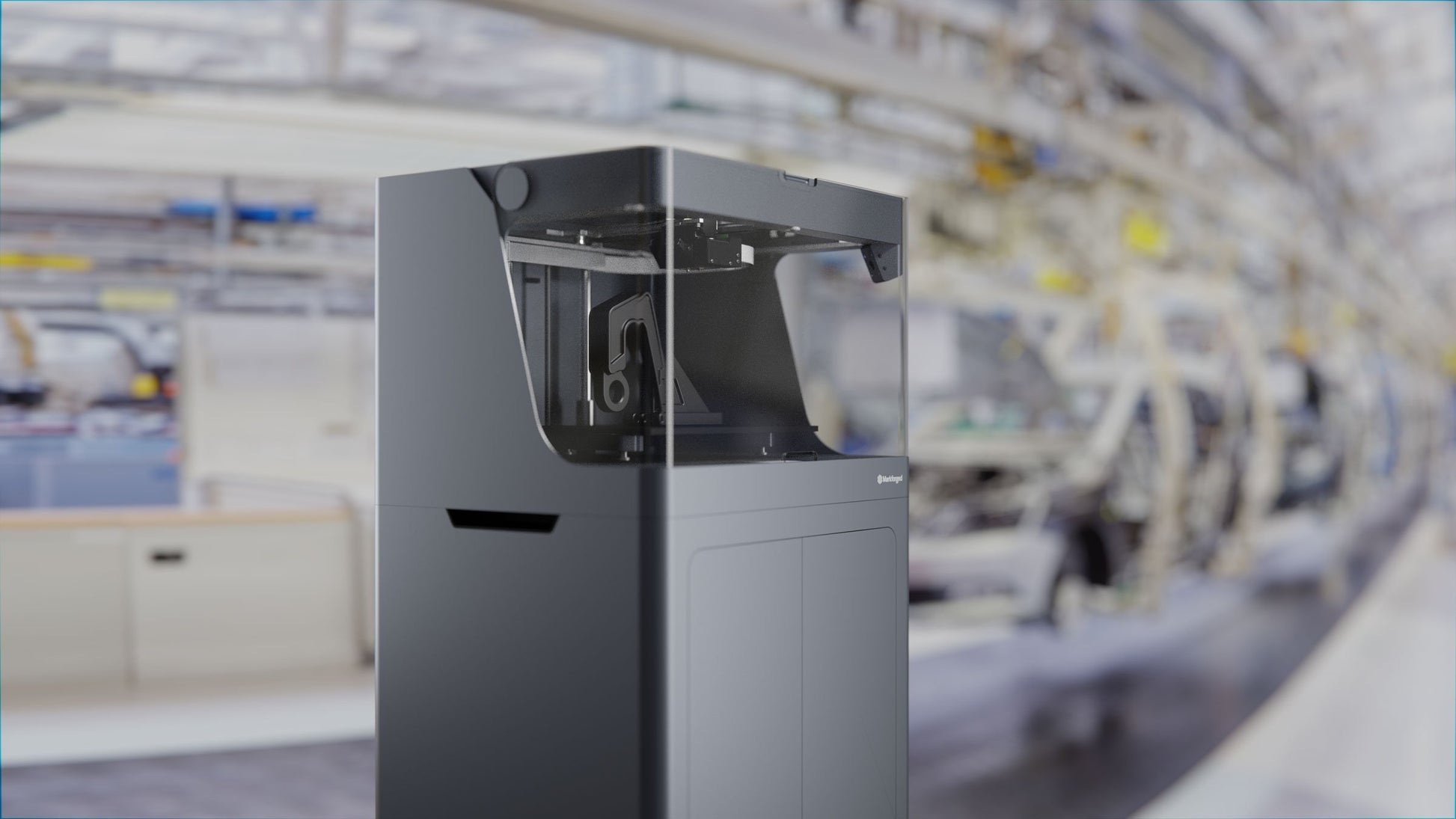

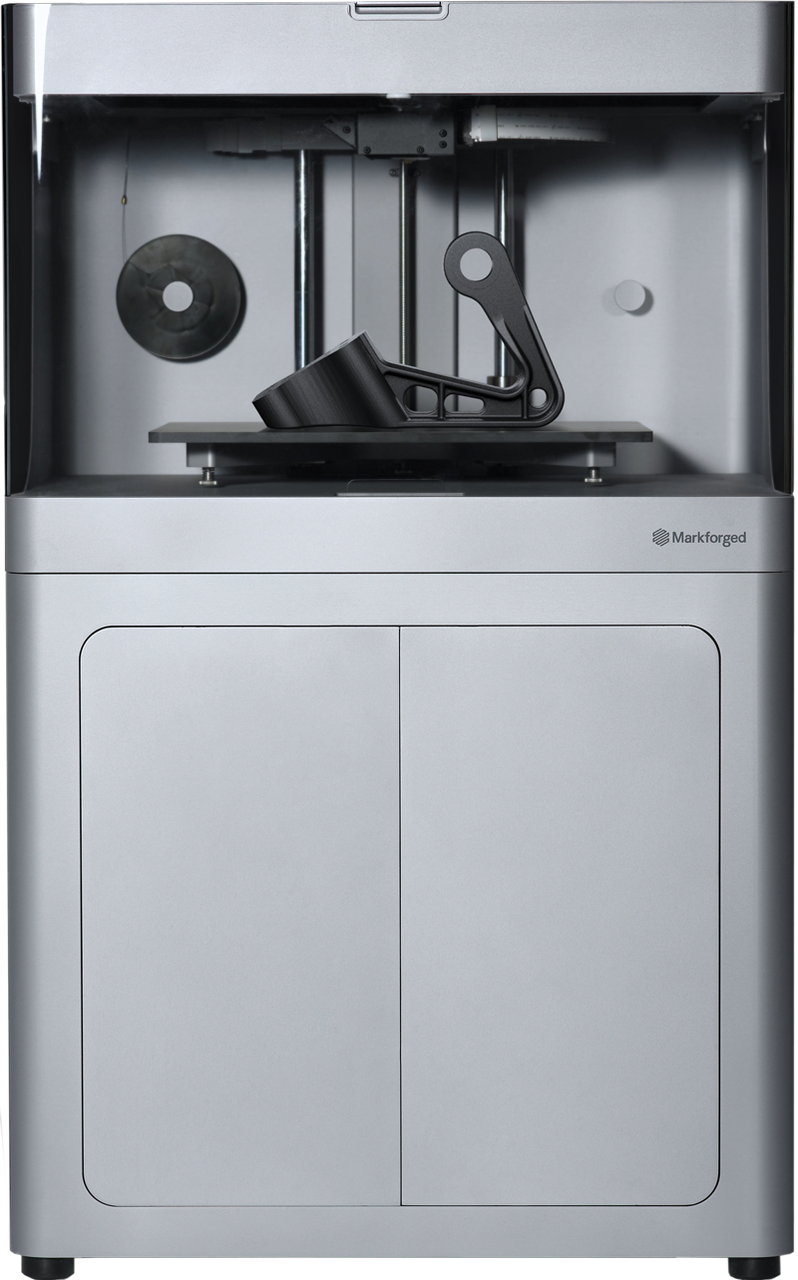

Markforged X5 3D Printer
Capable of printing parts 10x stronger than ABS – the X5 brings Continuous Fiberglass reinforcement to an industrial printing platform.
Continuous Fiberglass Parts
Print Fiberglass reinforced parts 10x stronger than ABS — capable of replacing some machined aluminum parts.Material & Print Mode Variety
Print with Onyx, Onyx FR, and Continuous Fiberglass in a wide variety of print modes, including high-resolution printing.Industrial Reliability and Accuracy
Precision-machined hardware, advanced sensors, and unique software drive industry leading accuracy and reliability. Only Markforged industrial 3D printers offer micron-level laser scanning for closed-loop calibration, reliably yielding parts with 50 μm repeatability and industry-leading surface finish.Continuous Fiber Reinforcement, Made Easy.
3D Printer
3D Printing Materials
System Details
Documents
3D Printing Process
Continuous Fiber Reinforcement (CFRPrinting Material
Composite Base Filaments, Continuous Fibers
Build Envelope Size
330 mm x 270 mm x 200 mm (12.9 x 10.6 x 7.8 in)
Onyx
Onyx FR
Onyx ESD
Fiberglass
About the Printer
The Markforged X5 CFR industrial 3D printer combines precision-built hardware, advanced sensors, and best-in-class software to deliver accurate parts repeatably. It features a reinforced, precision-machined gantry and a precision ground print bed that can be removed and replaced with 10 μm repeatability. Each piece of hardware in the filament extrusion system — from the nozzles to the extruder hobs — is optimized to resist wear from micro carbon fiber filled nylon filaments and maintain print quality over thousands of hours. Out of material sensors ensure that you’re always printing while a scanning laser on the printhead enables the printer to dynamically adjust the first layers of a print to achieve perfect bed adhesion.The X5 has a 3rd-generation fiber reinforcement system that enables you to lay down continuous fiber into parts. Only Markforged composite printers are capable of printing Continuous Fiberglass reinforced parts.
Software
Markforged Eiger Cloud (Other options available at cost)3D Printer Footprint
584 x 483 x 914 mm (23 x 19 x 36 in)
Weight
46 kg (102 lbs)
Power Requirements
100–240 VAC, 150 W (2 A peak)
The power of Continuous Carbon Fiber at your fingertips.
- 3D Printing Process -Continuous Fiber Reinforcement (CFR)
- 3D Printing Build Envelope - 330 mm x 270 mm x 200 mm
- 3D Printing Layer Resolution - 50 μm - 200 μm
- X3 Printer Footprint - 584 mm x 483 mm x 914 mm (23 x 19 x 36 in)
- Available 3D Printing Materials: Composite Base Filaments, Continuous Fiberglass Reinforcement (See Documents Tab for Markforged Material Data Sheet)
