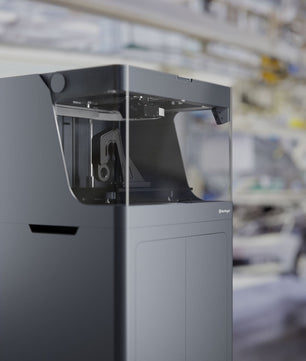

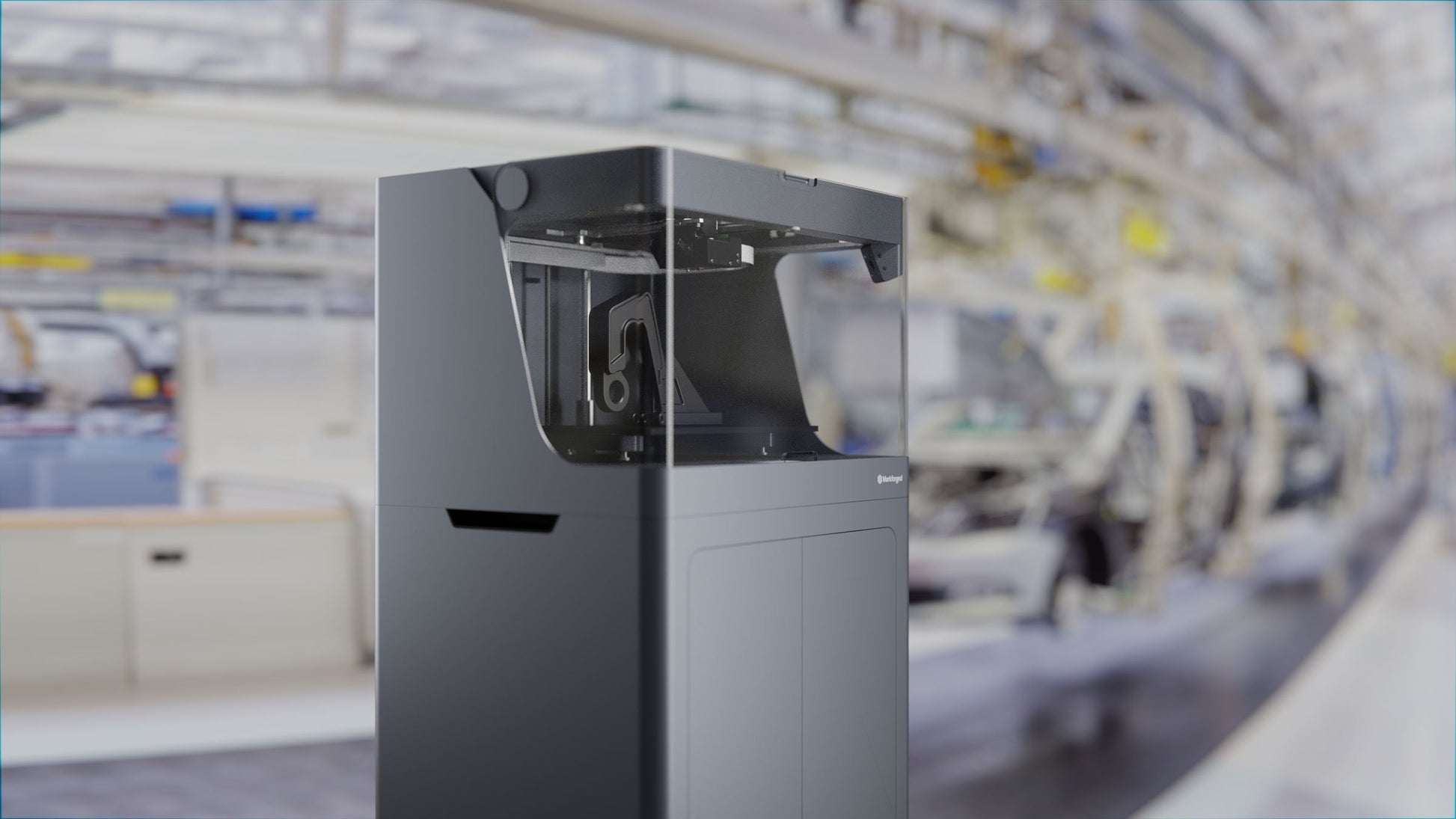

Markforged X7 3D Printer
The only way to get industrial-grade parts in hand in hours, not weeks — the X7 enables engineers and designers to fundamentally improve their manufacturing operation at light speed.
Carbon Fiber Strength
The X7 3D prints Continuous Carbon Fiber reinforced parts in hours that are as strong as — and capable of replacing — machined aluminum.Functional Parts of All Types
Whatever your functional requirements are — flame resistant, chemical resistant, energy absorbent, high resolution, draft parts — the X7 has an industrial material or print mode capable of fabricating a functional part for you.Industrial Reliability and Accuracy

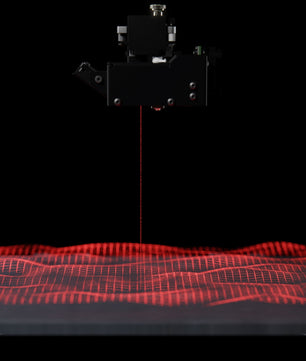

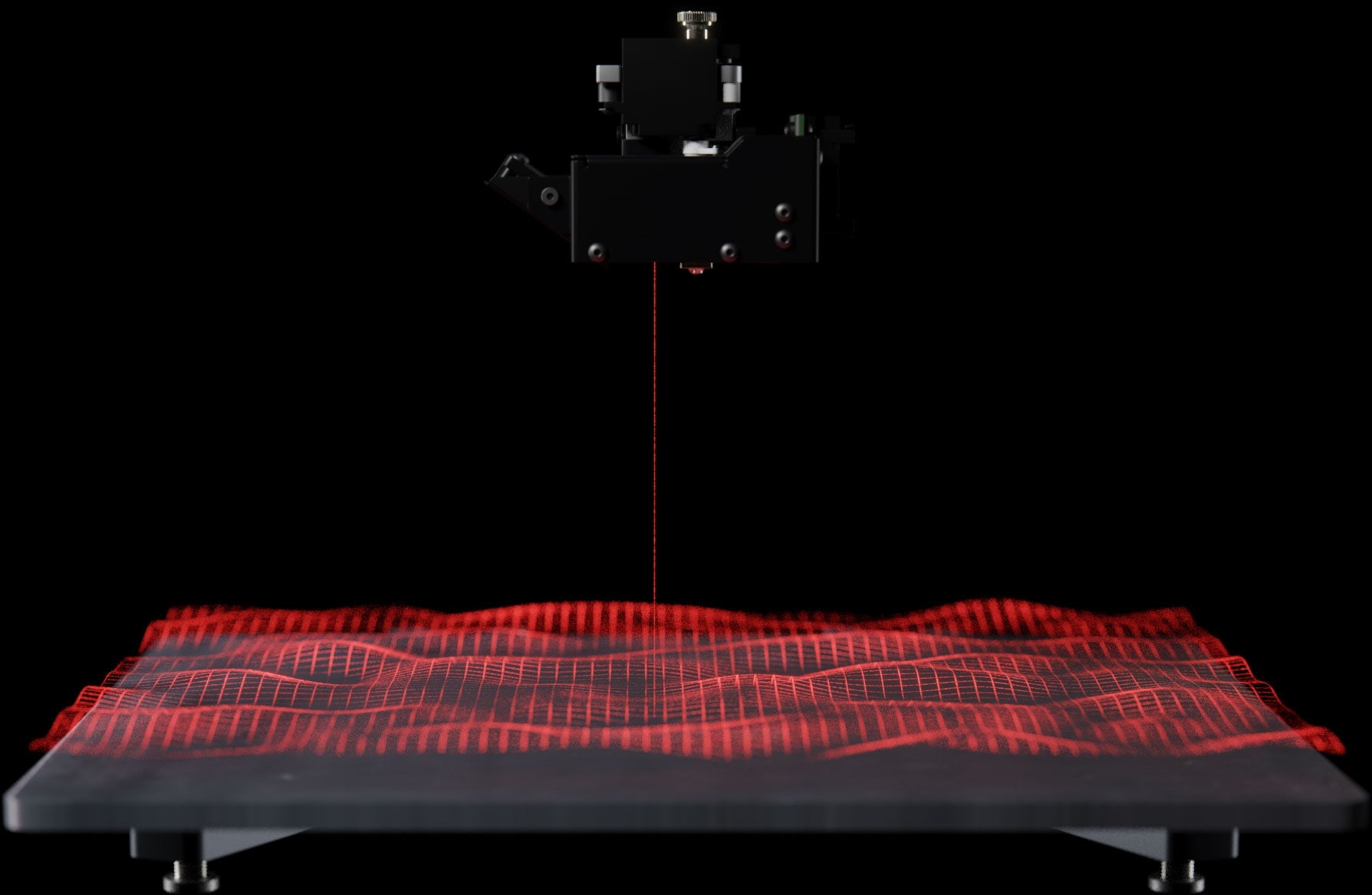

Precision-machined hardware, advanced sensors, and unique software drive industry leading accuracy and reliability. Only Markforged industrial 3D printers offer micron-level laser scanning for closed-loop calibration, reliably yielding parts with 50 μm repeatability and industry-leading surface finish.
3D Printer
3D Printing Materials
System Details
Documents
3D Printing Process
Continuous Fiber Reinforcement (CFRPrinting Material
Composite Base Filaments, Continuous Fibers
Build Envelope Size
330 mm x 270 mm x 200 mm (12.9 x 10.6 x 7.8 in)
Onyx
Onyx FR
Onyx ESD
Nylon White
Carbon Fiber
Kevlar
Fiberglass
HSHT Fiberglass
About the Printer

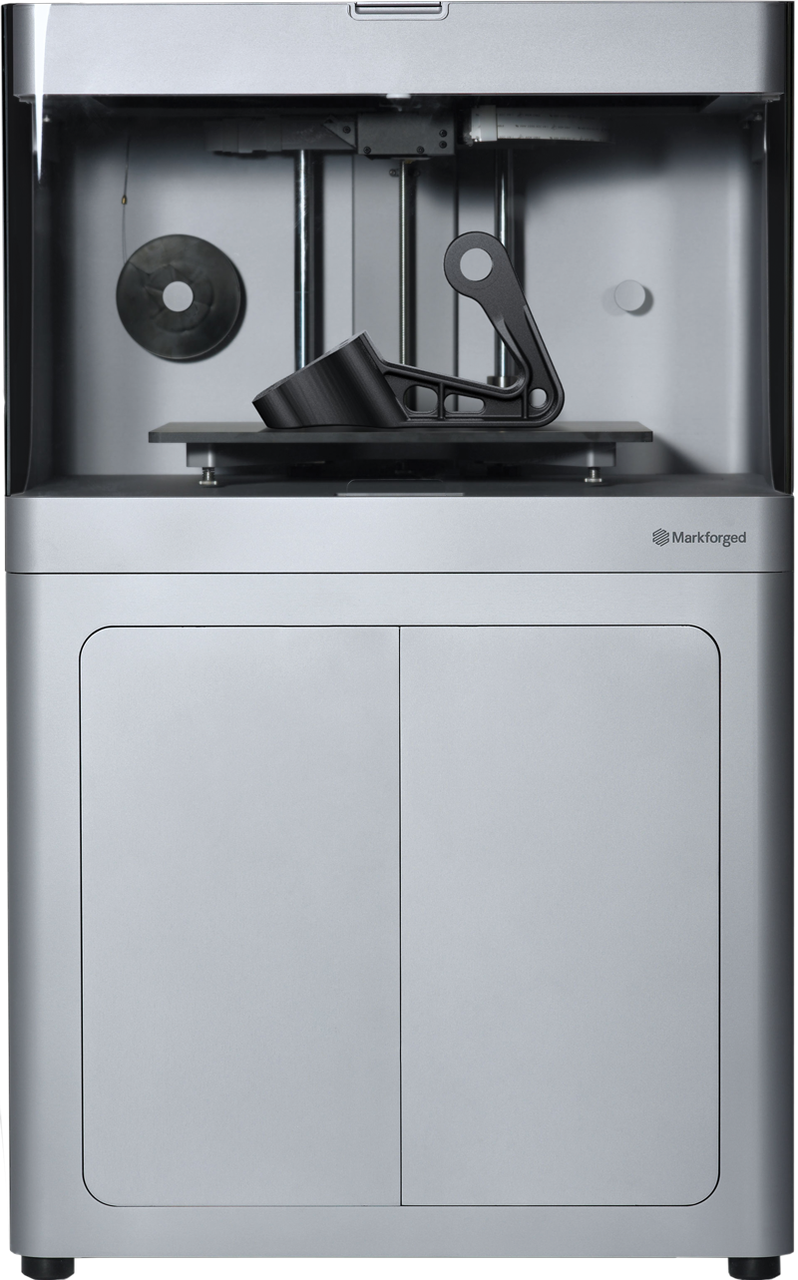

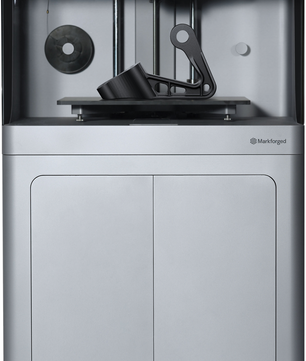

The Markforged X7 CFR industrial 3D printer combines precision-built hardware, advanced sensors, and best-in-class software to deliver accurate parts repeatably. It features a reinforced, precision-machined gantry and a precision ground print bed that can be removed and replaced with 10 μm repeatability. Each piece of hardware in the filament extrusion system — from the nozzles to the extruder hobs — is optimized to resist wear from micro carbon fiber filled nylon filaments and maintain print quality over thousands of hours. Out of material sensors ensure that you’re always printing while a scanning laser on the printhead enables the printer to dynamically adjust the first layers of a print to achieve perfect bed adhesion and inspect parts for accuracy after printing.The X7 has a 3rd-generation fiber reinforcement system that enables you to lay down continuous fiber into parts. Only Markforged composite printers are capable of printing continuous fiber reinforced parts.
Software
Markforged Eiger Cloud (Other options available at cost)3D Printer Footprint
584 x 330 x 355 mm (23 x 13 x 14 in)
Weight
16 kg (35 lbs)
Power Requirements
100–240 VAC, 150 W (2 A peak)
Markforged enables the power of Continuous Carbon Fiber at your fingertips.
- 3D Printing Process -Continuous Fiber Reinforcement (CFR)
- 3D Printing Build Envelope - 330 mm x 270 mm x 200 mm
- 3D Printing Layer Resolution - 50 μm - 200 μm
- X3 Printer Footprint - 584 mm x 483 mm x 914 mm (23 x 19 x 36 in)
- Available 3D Printing Materials: Composite Base Filaments, Continuous Fiberglass Reinforcement (See Documents Tab for Markforged Material Data Sheet)
Revolutionary parts are just a form away!
Connect with one of our additive manufacturing experts to Request a Quote, Sample part or Discuss an 3D printing application
X7 Customer Success Stories
Siemens Energy Innovation Center
The one-of-a-kind Siemens Energy Innovation Center in Florida was tasked with finding a better way to maintain turbines that could help reduce offsite repairs and costly downtime.
